BAER Machine Taps Spiral Flute Form C
BAER Machine Taps Spiral Flute Form C
Machine Taps specially designed for use in blind holes.

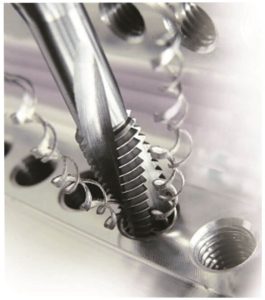

The high spiral flutes remove the chips against the direction of cutting assuring secure removal of chips even in long-chipping and deep blind holes.
They are commonly used in construction, free-machining, case hardened & heat-treatable steels.
Suitable for non abrasive material up to 900 N/mm2 and unalloyed and low alloyed steel.
There are many variants available in this flute design.
- Reverse Thread Taps for Left-Hand threads
- HSSE-VAP Steam tempered taps for high alloyed steels.
- HSSE-TIN for longer tool life
- HSSE-PM-TiAIN for high tensile materials.
HSSE – UNiTAP for Universal Use – Special design
The BAER UNiTAP has a unique geometry which makes this a professional choice for all applications and materials.
The BAER UNiTAP is made from HSSE-TiAIN.
Due to its universal application possibilities, one UNiTAP can do the work of several conventional taps thereby making considerable savings.
Baer-MC-Tap-Form-C-UNITAP-Spiral Flute-Metric
HSSE for general use
Baer-MC-Tap-Form-C-Spiral Flute-Metric
Baer-MC-Tap-Form-C-Spiral Flute-UNC
Baer-MC-Tap-Form-C-Spiral Flute-UNF
Baer-MC-Tap-Form-C-Spiral Flute-BSW
Baer-MC-Tap-Form-C-Spiral Flute-BSP
HSSE Left-Hand Taps
Baer-MC-Tap-Form-C-Spiral Flute-Left-Hand-Metric
HSSE-VAP for Stainless Steels
Baer-MC-Tap-Form-C-Spiral Flute-Metric-HSSE-VAP
HSSE-TIN for longer tool life
Baer-MC-Tap-Form-C-Spiral Flute-Metric-HSSE-TIN
HSSE-PM-TIAIN – for High Tensile and alloy steels
Baer-MC-Tap-Form-C-Spiral Flute-Metric-HSSE-PM-TiAlN
HSSE-TIAIN for Aluminium with special thread profile
Baer-MC-Tap-Form-C-Spiral Flute-Metric-HSSE-PM-TiAlN-AL
HSSE for special use
Baer-MC-Tap-Form-C-Spiral Flute-Metric-HSSE-Long
