JCPlas Thread Forming Screws for Plastics
–
The reliable thread forming screw for easy fastening into thermoplastics.
Plastic is proving to be a versatile material for the future in spite of the hue and cry against it. It is opening up a world of innovations where smaller, lighter and cheaper is driving the markets.
But it comes with its own technological challenges such as suitable fastening solutions.
The regular screws are completely unsuitable leading to development of specialised screws for use in plastics. With the increasing use of 3D printing technology, it has become imperative that a reliable screw capable of providing a secure strong joint in plastics is available
With the increasing use of 3D printing technology, it has become imperative that a reliable screw capable of providing a secure strong joint in plastics is available.
An effective solution is to use thread-forming screws with 30° thread form.
This feature allows the screw to make deeper grooves into the material and capture more of it between the threads, creating an even greater resistance to shear force while reducing stress.
The JCPlas screw uses this design form which provides many benefits.
Specially Designed Screws for Plastics
Our screws are made from Stainless Steel AISI-304 Grade to provide a strong corrosion resistant assembly for a long life to your product.
Now also available in Black Coated Finish
This finish is very useful in reducing light reflection from parts and providing an integrated finish to black coloured products and parts.
These screws have a permanent black colour with exceptional strength and elasticity that does not chip, peel, craze, or rub off and provides good resistance to wear and abrasion.
Available in a variety of head styles and drives.

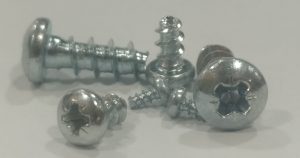

PAN Phillips (~WN1412)
The pan head is cylindrical head with a slightly rounded top surface and a flat bearing surface underneath.
This head style is ideal for most applications where a protruding head is acceptable.
Thread Forming Screw for Plastic Pan Phillips SS-304 A2 B4B66 – Download Datasheet
Also available in a black finish
Thread Forming Screw for Plastic Pan Phillips SS-304 A2 BLACK U4B66 – Download Datasheet

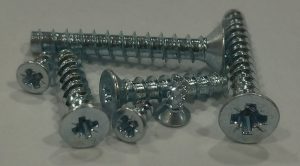

CSK Phillips (~WN1413)
The Countersunk head (or Flat head) is preferred to obtain a flush finish and requires a matching counter in the workpiece.
Thread Forming Screw for Plastic CSK Phillips SS-304 A2 B4B67 – Download Datasheet
Also available in a black finish
Thread Forming Screw for Plastic CSK Phillips SS-304 A2 BLACK U4B67 – Download Datasheet
PAN 6-Lobe Drive (~WN1452)
The 6-Lobe drive provides for a slipless installation with reduced operator effort and fatigue.
The Pan head gives better clamping on the workpiece.
Thread Forming Screw for Plastic Pan 6-Lobe SS-304 A2 B4B72 – Download Datasheet
Also available in a black finish.
Thread Forming Screw for Plastic Pan 6-Lobe SS-304 A2 BLACK U4B72 – Download Datasheet
CSK 6-Lobe Drive (~WN1453)
The Countersunk head is preferred to obtain a flush finish and requires a matching counter in the workpiece.
The 6-Lobe drive provides for a slipless installation with reduced operator effort and fatigue.
Thread Forming Screw for Plastic CSK 6-Lobe SS-304 A2 B4B73 – Download Datasheet
Also available in a black finish on request.
Thread Forming Screw for Plastic CSK 6-Lobe SS-304 A2 BLACK U4B73 – Download Datasheet
PAN 6-Lobe with Flange (~WN1451)
This head style features a built in washer along with a 6-Lobe drive that provides for a slipless installation with reduced operator effort and fatigue.
The flanged head provides a larger distribution of the clamping force.
Thread Forming Screw for Plastic Pan 6-Lobe with Flange SS-304 A2 B4B74 – Download Datasheet
Also available in a black finish on request.
Thread Forming Screw for Plastic Pan 6-Lobe with Flange SS-304 A2 BLACK U4B74 – Download Datasheet
JCSlim 6-Lobe – Low Profile Head
JCPlas is now also available with the special JCSlim thin head. Thin head screws are 77% thinner than conventional pan head which gives a flat external surface and contributes to low-profile design and weight saving.
It comes with a 6-Lobe drive that provides for a slipless installation with reduced operator effort and fatigue.
The large diameter heads of the low-profile screws have been engineered to spread the load across a wide surface to provide greater holding power in thinner material applications. These offer a sleek, unobtrusive and polished finish for any design.
Thread Forming Screw for Plastic Low Profile 6-Lobe SS-304 A2 B4B78 – Download Datasheet
PT Screws
Also checkout our PT range of screws – The reliable Self-Tapping screw for easy fastening into Metal and Plastic.
Usage Guide
- For optimal joints in thermoplastics, we recommend designing the bore geometry in relation with the screw diameters and materials. Refer our guide for thread forming screws.
- Screw Length – The thread engagement length should be 2.0 to 2.5 times the diameter of the
screw. - Always use trials to determine the optimal hole size and screw length. This will be dependent on depth of engagement, ease of driving required and material being tapped.
- Ensure trials are made to determine the best tightening torque for your application. Use up to 80% of the values suggested by your trials.
